LG-55TC3CG-H

Touch Signage

Key Feature

Brightness : 350nit (w Glass, typ)
Multi Touch Point : 40 Points (Max.)
Interface (Input) : HDMI (2, HDCP 2.2/1.4), DP (1, HDCP2.2/1.3), RS-232C In, RJ45 (LAN), IR In, USB2.0 Type A (2)
Interface (Output) : DP Out (1, Input HDMI1/2/DP/OPS), Audio Out, Externel Speaker Out (6 ohm), Touch USB (USB 2.0 Type B), RS-232C Out

0.00 AED

SIZE
- 55"

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

SIZE

55"

SIZE: 55"

55" 4K UHD interactive display

professional interactive display with clear visuals and 350 nit brightness

40-point multi-touch interactive screen

smooth interactive screen for multi-user interaction

versatile connectivity options

HDMI, DP, USB, LAN, and control ports on the interactive display

commercial-grade interactive board

reliable interactive board for retail and business environments

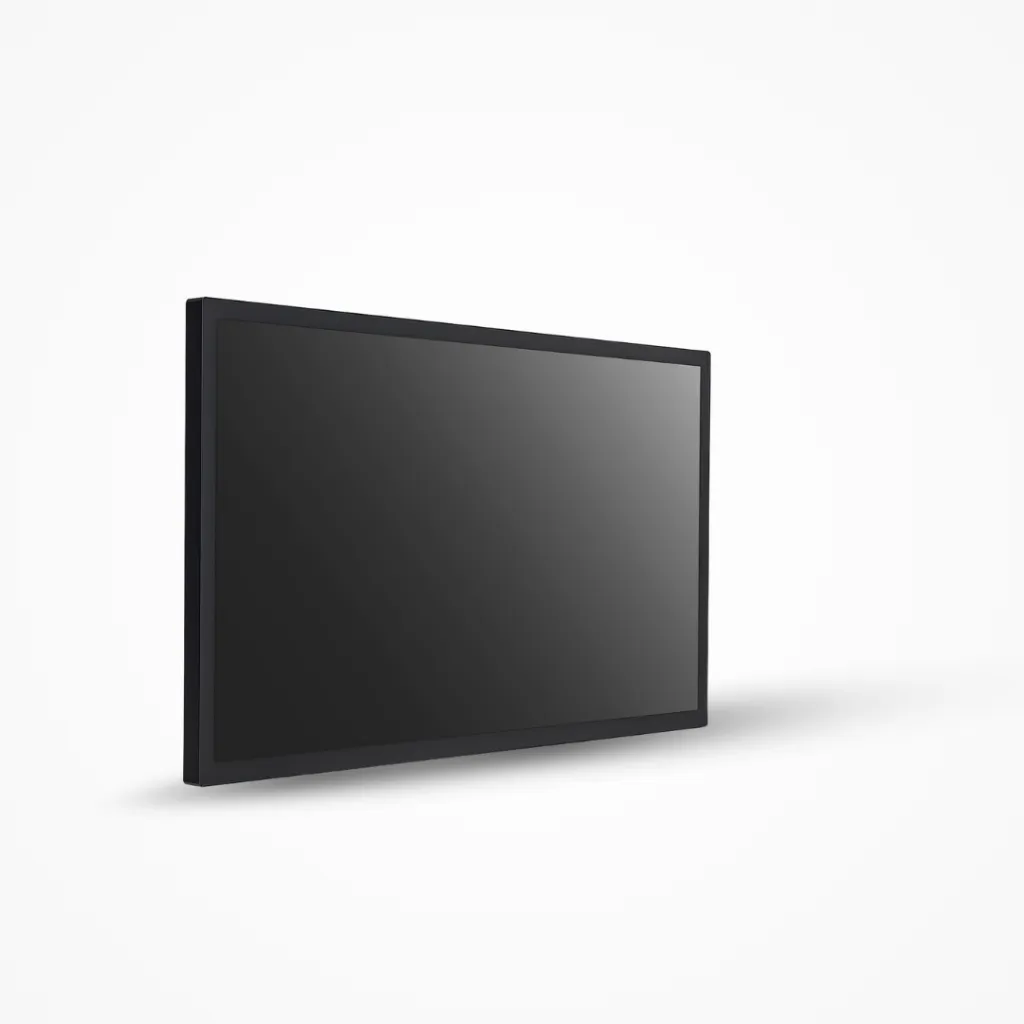

LG 55TC3CG-H Interactive Display – Professional Interactive Screen in Dubai, UAE

The LG 55TC3CG-H is a high-performance interactive display designed for commercial environments, digital signage, and collaborative applications. Featuring a 55-inch 4K UHD interactive screen with 350 nit brightness, this interactive display delivers clear visuals and smooth touch performance for professional use.

Built with IPS panel technology, the interactive screen ensures wide viewing angles and consistent image quality. The interactive board supports up to 40 touch points, enabling multiple users to interact with the display simultaneously, making it ideal for collaborative environments. ()

At Logixer, we supply and install LG interactive displays across Dubai and the UAE, helping businesses enhance engagement and communication through advanced display solutions.

Designed for Interactive Engagement

Smooth Multi-Touch Experience

The LG interactive board supports up to 40 simultaneous touch points, allowing multiple users to interact with the interactive screen at the same time. This makes the interactive display suitable for teamwork, presentations, and customer engagement.

Accurate and Responsive Touch

The interactive display provides precise touch response across the entire screen, including edges, ensuring a seamless and natural user experience.

High-Quality Display Performance

4K UHD Visual Clarity

The interactive display offers Ultra HD resolution (3,840 × 2,160), delivering sharp and detailed visuals for presentations and digital content. ()

Wide Viewing Angles

With IPS technology, the interactive screen maintains consistent color and clarity from different viewing positions, making it ideal for group environments.

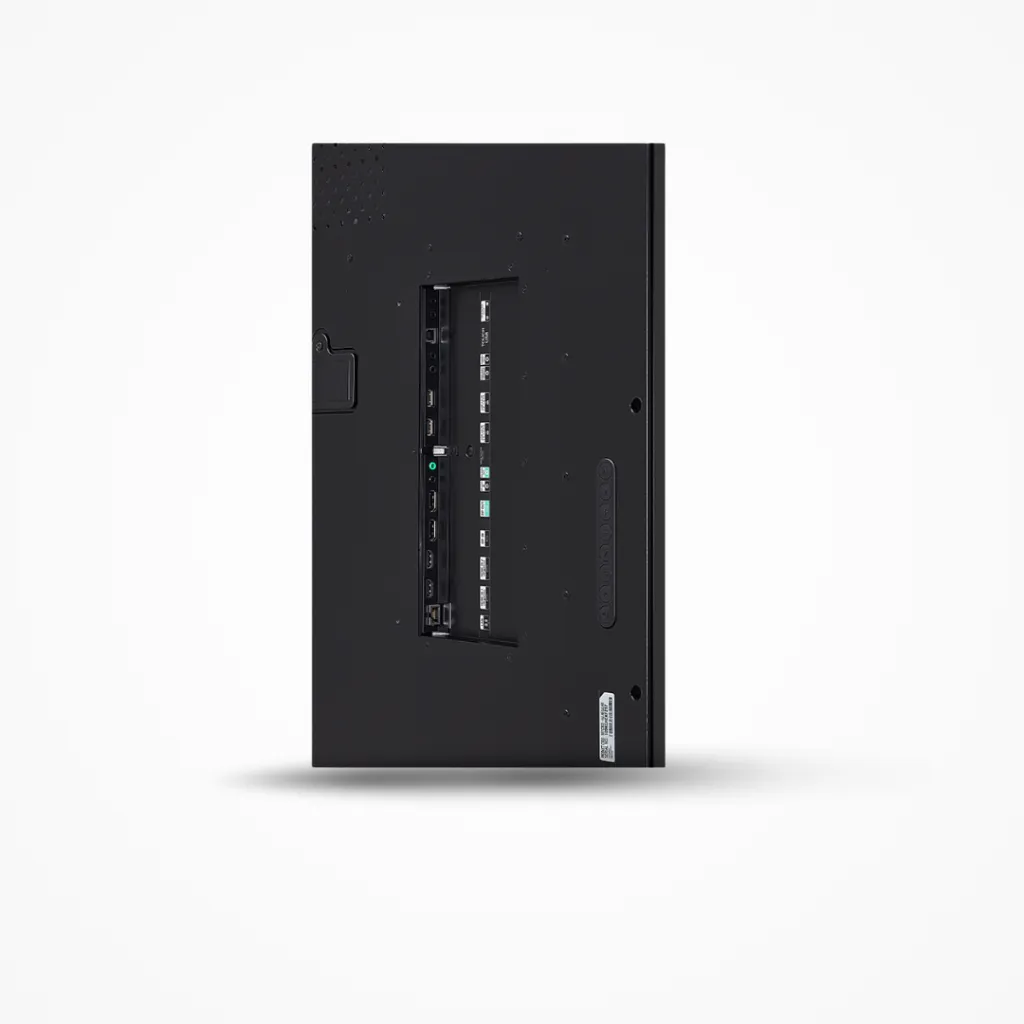

Advanced Connectivity and Integration

Multiple Input and Output Options

The interactive display supports HDMI, DisplayPort, USB, LAN, and RS-232C connectivity, allowing easy integration with various systems and devices.

Flexible System Integration

These connectivity options make the interactive board suitable for digital signage, retail applications, and enterprise environments.

Durable and Reliable Design

Anti-Shatter Protection

The interactive display is equipped with durable glass protection, reducing the risk of damage and ensuring long-term reliability in high-usage environments. ()

24/7 Operation Capability

The interactive screen is designed for continuous operation, making it ideal for commercial and public applications.

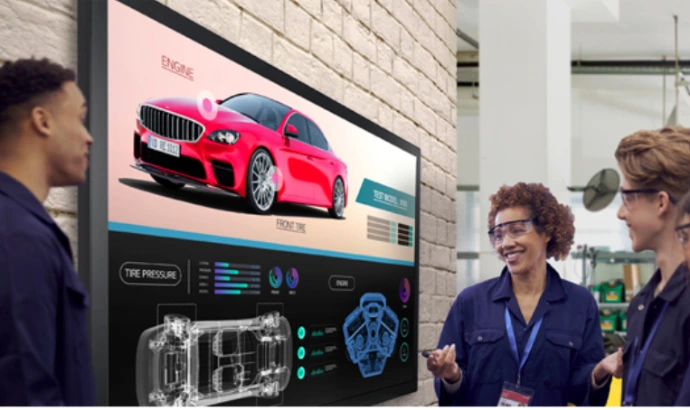

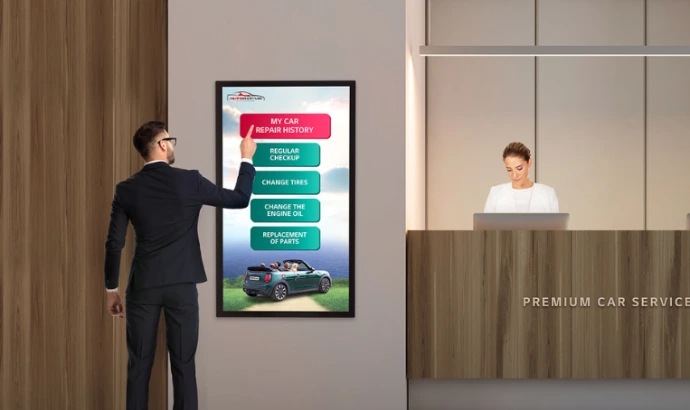

Ideal Applications

The LG interactive display is suitable for:

• Retail environments

• Digital signage solutions

• Corporate spaces

• Interactive kiosks

• Public information systems

LG Interactive Display Supply and Installation in Dubai

At Logixer, we provide complete supply, installation, and support for LG interactive displays across Dubai and the UAE. Our team ensures smooth deployment of interactive screens and interactive boards for commercial and business environments.

The LG 55TC3CG-H interactive display is a reliable and efficient solution for businesses looking to deliver interactive and engaging digital experiences.

Panel

Screen Size	55"
Panel Technology	IPS
Native Resolution	3,840 x 2,160 (4K UHD)
Brightness	350nit (w Glass, typ), 280nit (w Glass min)
Contrast Ratio	1,100:1
Dynamic CR	500,000:1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 x 178
Color Depth	10bit, 1.07Billion colors
Response Time	8ms (G to G)
Surface Treatment (Haze)	Haze (28%)
Operation Hours (Hours / Days)	24 / 7
Portrait / Landscape	Yes / Yes

Mechanical Specification

Bezel Color	Black
Bezel Width	33.5 / 33.4 / 33.4 / 38 mm
Weight (Head)	34.5 Kg
Packed Weight	39.8 Kg
Monitor Dimensions (W × H × D)	1,276.4 x 751.9 x 44.9 mm
Carton Dimensions (W × H × D)	1,410 x 880 x 207 mm (Box outer size)
VESA™ Standard Mount Interface	300 x 300

Key Feature (Hardware)

Internal Memory	8GB (System 4GB + Available 3.6GB)
Sensor	Temperature Sensor, Auto Brightness sensor
Local Key Operation	Yes

Key Feature (Software)

webOS ver.	webOS 4.1
Embedded CMS	Local Contents Scheduling, Group Manager
USB Plug & Play	Yes
Fail over	Yes
Multi-screen	PIP, PBP
Background Image	Booting Logo Image, No Signal Image
Sync Mode	RS-232C Sync, Local Network Sync
Video Tag	Yes
Play via URL	Yes
Rotation	Screen Rotation, External Input Rotation
Gapless Playback	Yes
Tile Mode Setting	Yes
Setting Data Cloning	Yes
SNMP	Yes
ISM Method	Yes
Auto Set ID	Yes
Status Mailing	Yes
Control Manager	Yes
3rd Party Compatibility	Crestron Inside
Power	Smart Energy Saving, PM mode, Wake on LAN
HDMI-CEC	Yes
SI Server Setting	Yes
webRTC	Yes
Pro:Idiom	Yes

Environment Conditions

Operation Temperature	0 °C to 40 °C
Operation Humidity	10% to 80%

Power

Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power

Power Consumption

Typ.	105 W
Max.	145 W
Smart Energy Saving	74 W
DPM	0.5 W↓
Power off	0.5 W↓
BTU (British Thermal Unit)	358 BTU/Hr (Typ.), 495 BTU/Hr (Max.)

Standard (Certification)

Safety	NRTL
EMC	FCC Class "A"
ErP	EPA 8.0

OPS Compatibility

OPS Type Compatible

Yes (Piggyback)

Software Compatibility

Super Sign CMS	Yes
Super Sign Control / Control+	Yes
LG Connected Care	Yes

Connectivity

Input	HDMI (2, HDCP 2.2/1.4), DP (1, HDCP2.2/1.3), RS-232C In, RJ45 (LAN), IR In, USB2.0 Type A (2)
Output	DP Out (1, Input HDMI1/2/DP/OPS), Audio Out, Externel Speaker Out (6 ohm), Touch USB (USB 2.0 Type B), RS-232C Out

Accessory

Basic	Power Cord 1.55 M1, USB Cable (Type A-Type B) 1.8 M1, HDMI Cable 3 M*1, User Manual, QSG, Remote Controller (include battery 2ea), RS232C cable (Phone jack), IR Receiver , Magnet Sheet (3ea)
Optional	Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF), SP-5200

Touch

Available Object Size for Touch	Ø6mm ↑
Reponse Time (Based on 'Paint' app on Windows 10 PC)	Scan time :10 ms
Accuracy	2 mm±0.2 mm
Interface	USB 2.0
Protection Glass Thickness	3.2 T (Anti-Glare)
Protection Glass Transmission	83%
Operating System Support	Win 8.1 / 10, Linux (Kernel v3.0 above)
Multi Touch Point	Max. 40 Points

What connectivity options are available in the LG 55TC3CG-H interactive display?

The interactive display supports HDMI, DisplayPort, USB, LAN, RS-232C, and audio output, ensuring flexible integration with different systems.

Can multiple users use the LG 55TC3CG-H interactive board simultaneously?

Yes, the interactive board allows multiple users to interact on the interactive screen at the same time, supporting teamwork and engagement.

Is the LG 55TC3CG-H interactive display easy to integrate with existing systems?

Yes, the interactive display offers multiple input and output options, making it easy to connect and integrate with existing devices and systems.

What is the display quality of the LG 55TC3CG-H interactive screen?

The interactive screen offers 4K UHD resolution with 350 nit brightness, delivering clear visuals on the interactive display.
