LG CreateBoard TR3DK-BM

LG CreateBoard

Key Feature

Internal Memory : 64GB (Storage) / 8GB (RAM)
Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

0.00 AED

SIZE
- 75"
- 65"
- 55"
- 98"

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

SIZE	75", 65", 55", 98"

powerful interactive display

4K UHD interactive display with 8GB RAM and 64GB storage for smooth performance

40-point multi-touch interactive screen

responsive interactive screen for real-time collaboration

multi-size interactive board

available in 55", 65", 75", 86", and 98" interactive board options

high brightness display

up to 440 nit interactive display for clear visibility

LG TR3DK-BM Interactive Display – Advanced Interactive Screen in Dubai, UAE

The LG 55TR3DK-BM is a high-performance interactive display designed for modern collaboration, presentations, and interactive learning environments. Available in multiple sizes including 55", 65", 75", 86", and 98", this interactive display provides flexibility for different workspace requirements.

Featuring a 4K UHD interactive screen with a resolution of 3,840 × 2,160, the display delivers sharp visuals and excellent clarity. With brightness levels up to 440 nit and 390 nit typical, the interactive screen ensures clear visibility in various indoor lighting conditions.

The interactive board is powered by strong internal hardware with 64GB storage and 8GB RAM, enabling smooth performance for applications, presentations, and multitasking.

At Logixer, we provide supply and installation of LG interactive displays across Dubai and the UAE, helping organizations upgrade their collaboration and communication systems.

Powerful Performance with LG Create Board

High-Speed Processing and Storage

The LG interactive display comes with 8GB RAM and 64GB internal storage, allowing users to run applications, manage files, and conduct sessions without performance lag. This makes the interactive screen suitable for business and educational use.

Optimized for Collaboration

The interactive display is built to support real-time collaboration, ensuring smooth operation during meetings, training sessions, and classroom activities.

Seamless Touch and Collaboration Experience

40-Point Multi-Touch Interactive Screen

The interactive board supports up to 40 simultaneous touch points, allowing multiple users to interact with the interactive screen at the same time. This enhances teamwork, brainstorming, and group discussions.

Natural Writing Experience

The interactive display provides a smooth and precise touch response, allowing users to write, draw, and annotate directly on the interactive screen with accuracy.

High-Quality Display Performance

4K UHD Interactive Display

With 4K resolution, the interactive display ensures detailed visuals and clear presentation content, making it ideal for professional environments.

Bright and Wide Viewing Experience

The interactive screen offers up to 440 nit brightness and wide viewing angles, ensuring consistent image quality from different positions in the room.

Smart Features for Productivity

Interactive Teaching and Presentation Tools

The LG Create Board includes built-in tools such as templates, annotation features, and digital whiteboard capabilities, making the interactive board ideal for both business and education environments.

Wireless Collaboration

With screen sharing capabilities, users can connect and share content from multiple devices, improving collaboration and meeting efficiency.

Flexible Design and Connectivity

Multiple Screen Size Options

The interactive display is available in different sizes, allowing businesses to choose the right interactive screen based on room size and usage.

Easy Integration and Connectivity

The interactive board supports various connectivity options, enabling seamless integration with laptops, mobile devices, and enterprise systems.

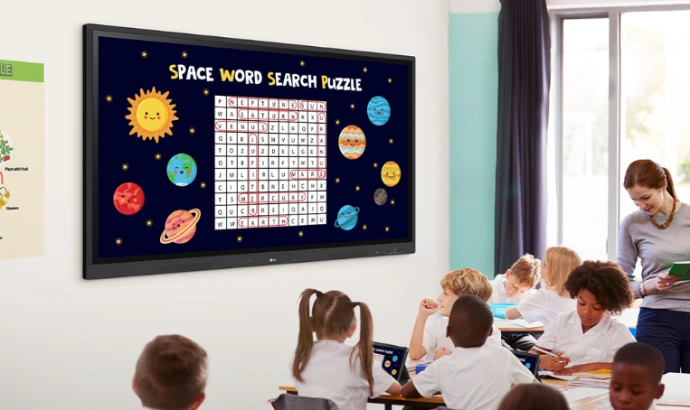

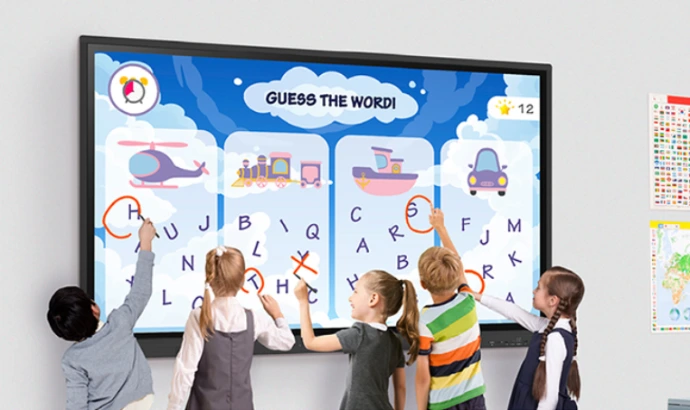

Ideal Applications

The LG interactive display is suitable for:

• Corporate meeting rooms

• Training and seminar rooms

• Educational institutions

• Smart classrooms

• Conference and presentation spaces

• Collaborative work environments

LG Interactive Display Supply and Installation in Dubai

At Logixer, we provide complete supply, installation, and technical support for LG interactive displays across Dubai and the UAE. Our team ensures smooth deployment of interactive screens and interactive boards tailored to your business needs.

The LG TR3DK-BM interactive display is a powerful and reliable solution for organizations looking to enhance collaboration, productivity, and digital interaction in modern workspaces.

Panel

Screen Size	55"
Panel Technology	IPS
Back Light Type	Direct
Aspect Ratio	16:09
Native Resolution	3,840 X 2,160 (4K UHD)
Refresh Rate	60 Hz
Brightness	440 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.)
Contrast Ratio	1,200 : 1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 × 178
Color Depth	10 bit (8 bit + FRC)
Response Time	8 ms
Surface Treatment (Haze)	25%
Lifetime	30,000 Hrs(L50, Min.), 50,000 Hrs (L30)
Operation Hours (Hours / Days)	16 / 7
Portrait / Landscape	No / Yes

Mechanical Specification

Bezel Color	Black
Bezel Width (T / R / L / B)	18 / 18 / 18 / 45 mm
Weight (Head)	26.1 kg
Packed Weight	34.5 kg
Monitor Dimensions (W × H × D)	1,271 × 774 × 87 mm
Carton Dimensions (W × H × D) (Box Outer Size)	1,401 × 859 × 220 mm
Handle	Yes
VESA™ Standard Mount Interface	400 × 200 mm

Environment Conditions

Operation Temperature	0 to 40°C
Operation Humidity	10% to 90%

Power

Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power

Power Consumption

Typ./Max.	170 / 395 W
DPM	≤0.5W
Power off	≤0.5W
BTU (British Thermal Unit)	580 BTU/Hr (Typ.), 1,348 BTU/Hr (Max.)

Certification

Typ.	175 W
Max.	365 W
Smart Energy Saving (70%)	Yes
DPM	0.5W
Power off	0.5 W
BTU (British Thermal Unit)	597 BTU/Hr (Typ.), 1245 BTU/Hr (Max.)

Certification

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP / Energy Star	Yes / Yes

Software Compatibility

LG Connected Care	Yes
LG Connected Care DMS	Yes

Connectivity

Input	HDMI (3, HDCP 2.2), RGB (VGA), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt)
Output	HDMI Out, Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)

Sound

Speaker

Yes (15W × 2)

Language

English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque

Accessory

Basic	Power Cord 3 M1, USB Cable (Type A-Type B) 5 M1, HDMI Cable 3 M1, Writing Pen2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional	Wall Mount(WM-L000S), Floor Stand(ST-000F)

Touch

Available Object Size for Touch	Ø2 mm↑
Response Time	≤5 ms
Accuracy	±1 mm
Interface	USB 2.0
Protection Glass Thickness	3 T (Anti-Glare)
Protection Glass Transmission	88%
Operating System Support	Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Linux / Mac)
Multi Touch Point	Max 40 points (Windows), Max 20 points (Android)

Android System

SoC	Quad Core A55
GPU	Mali G52MP2
RAM	8 GB
Storage	64 GB
Wi-Fi	802.11a/b/g/n/ac/ax (Wi-Fi 6)
LAN	Gigabit LAN
Bluetooth	Bluetooth 5.0
OS ver.	Android 13

Key Feature

Internal Memory (64 GB), Built-In Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Android 13, Background Image (Booting Logo Image), Multi-screen (PIP / PBP, External Source), Screen Share (LG CreateBoard Share), Power (Smart Energy Saving, Wake on LAN)

What is the LG 55TR3DK-BM interactive display used for?

The LG 55TR3DK-BM interactive display is designed for collaboration, presentations, and interactive learning. This interactive screen is ideal for meeting rooms, classrooms, and corporate environments.

How many touch points does the LG 55TR3DK-BM interactive board support?

The LG 55TR3DK-BM interactive board supports up to 40 touch points, allowing multiple users to interact simultaneously on the interactive display for better collaboration.

What are the performance specifications of the LG 55TR3DK-BM interactive display?

The interactive display comes with 8GB RAM and 64GB internal storage, ensuring smooth performance for multitasking, applications, and presentations on the interactive screen.

What is the display quality of the LG 55TR3DK-BM interactive screen?

The LG 55TR3DK-BM interactive screen features 4K UHD resolution with up to 440 nit brightness, delivering clear visuals and high-quality performance on the interactive display.

Interactive Display Solutions in Dubai and UAE

Logixer provides professional interactive display solutions in Dubai and across the UAE, including supply, installation, and technical support. Our range of interactive displays from leading brands such as ViewSonic, Samsung, LG and BenQ helps organizations build modern digital classrooms, collaborative meeting rooms, and advanced training environments.

Why Choose Logixer?

Logixer is a trusted supplier of interactive displays in Dubai and across the UAE. We provide professional supply, installation, and technical support for interactive panels from leading brands such as ViewSonic, Samsung, and BenQ. Our solutions help schools, training centers, and businesses create modern digital collaboration environments.
