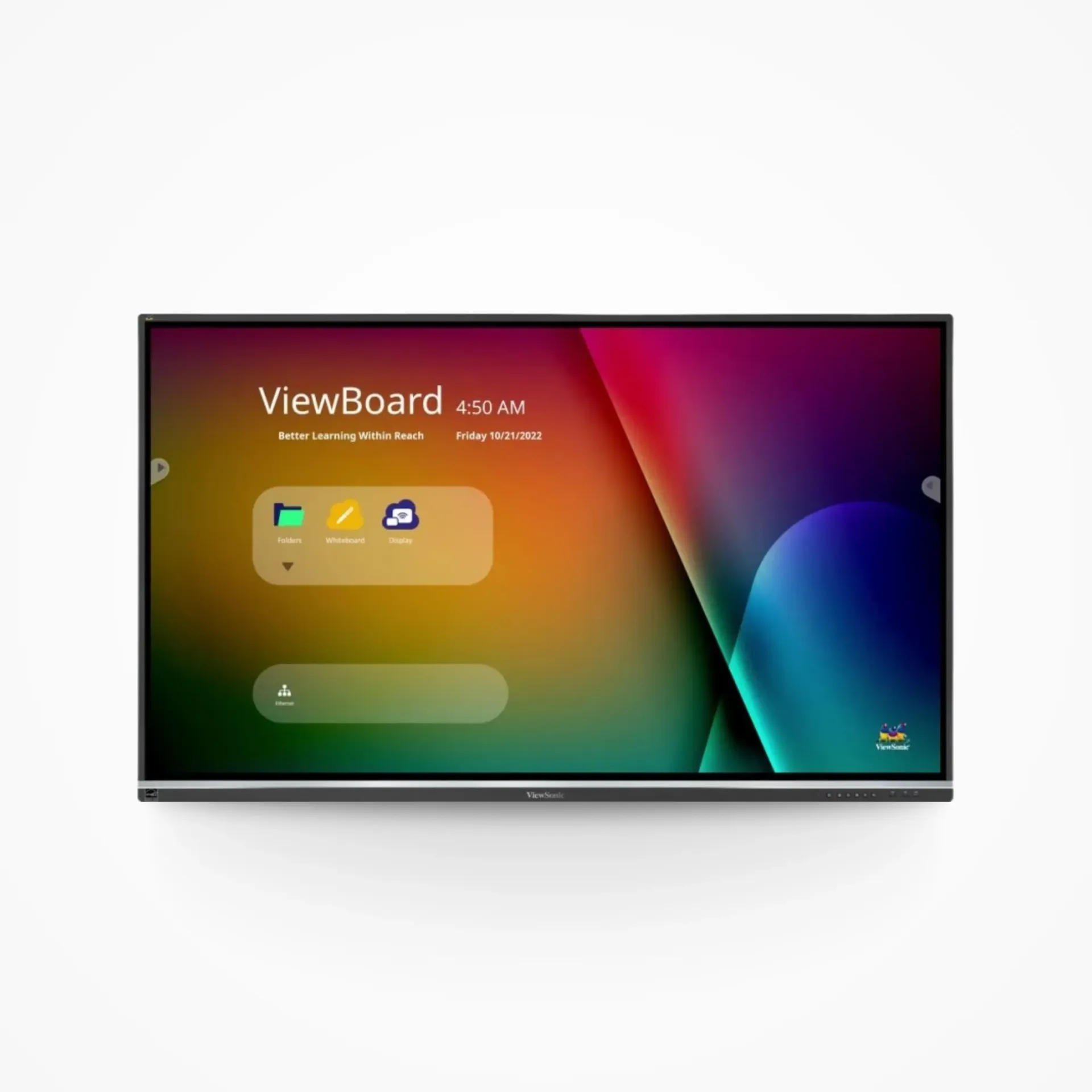

Viewsonic-7550-5F-N

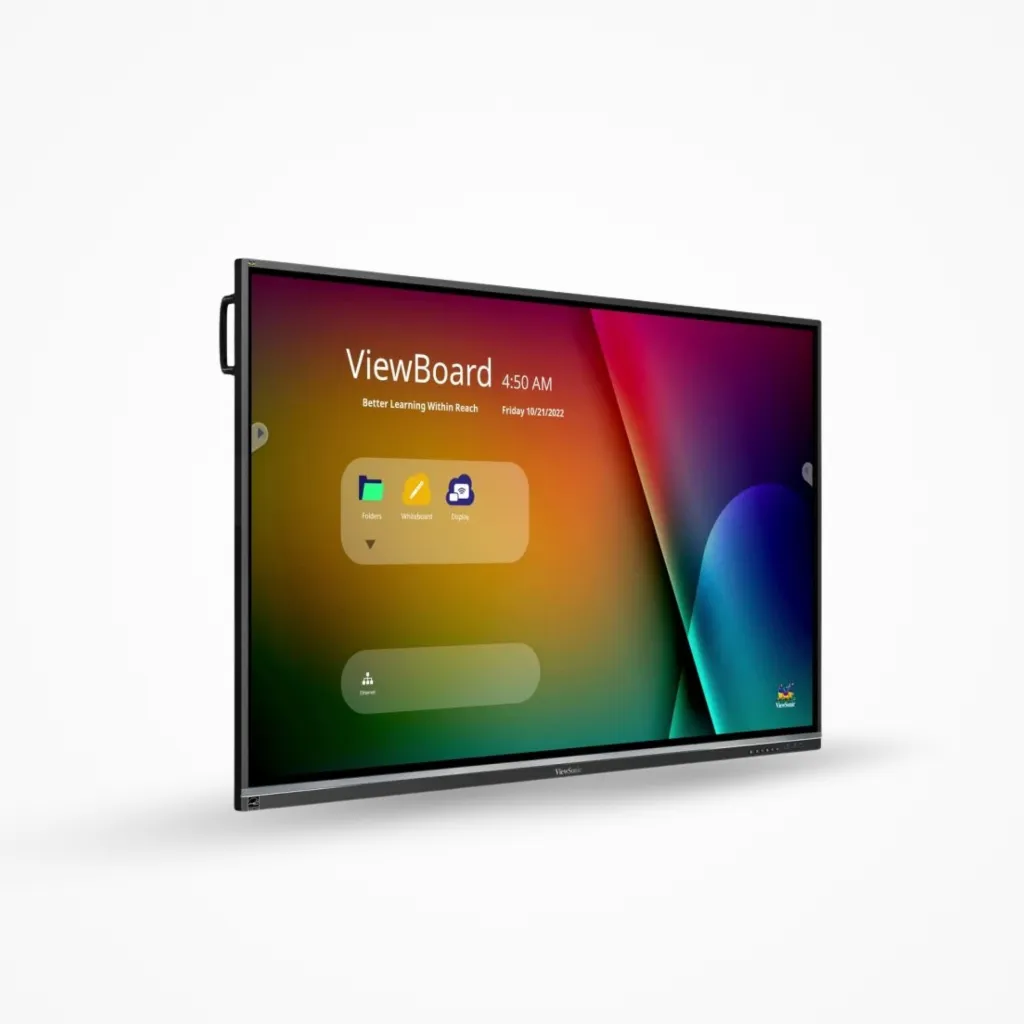

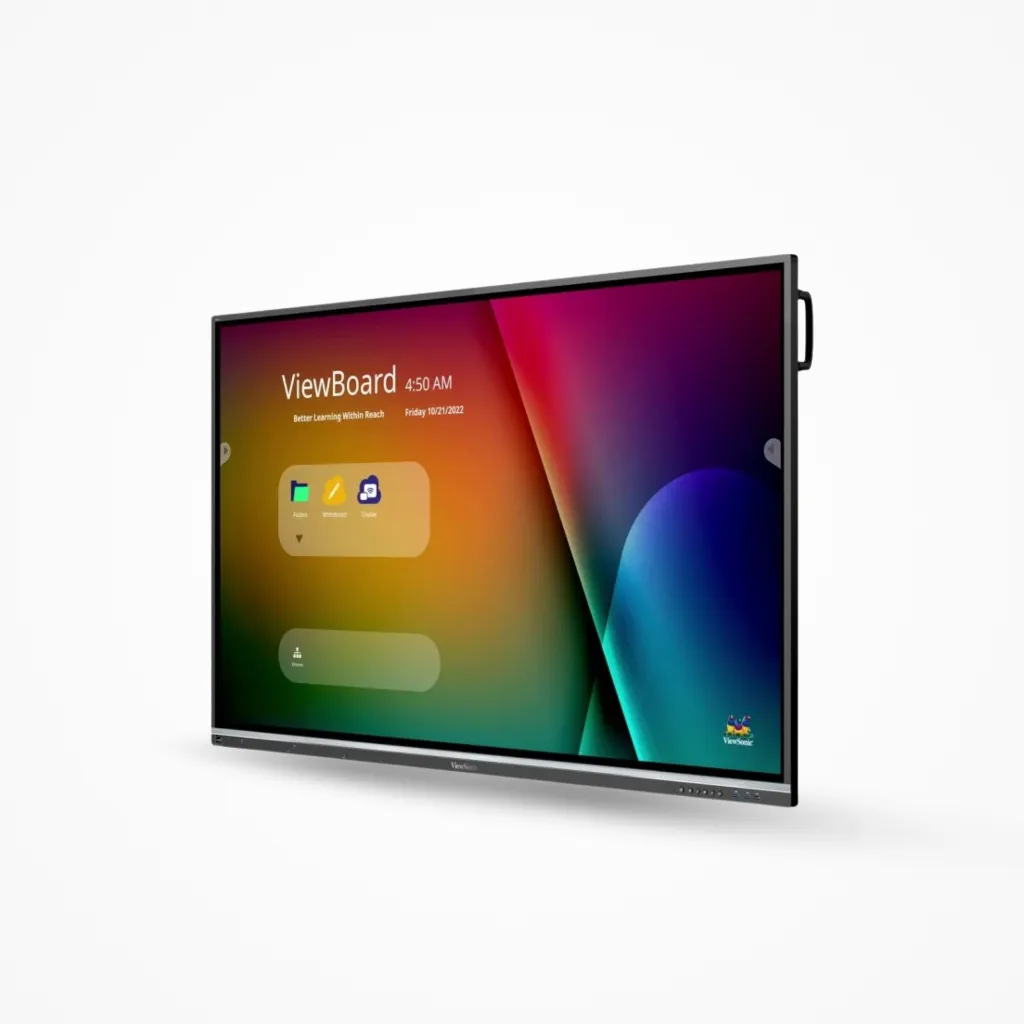

ViewBoard® 75” 4K Interactive Display

Key Feature

  • Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience​
  • myViewBoard Whiteboard software with engaging classroom tools​
  • Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
  • Intuitive remote device control and multimedia broadcast with myViewBoard Manager ​
  • Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradable to Android 13)
0.00 AED 0.00 AED

  • SIZE
 Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
SIZE 75"
SIZE: 75"

Ultra Fine Touch with 40-Point Multi-Touch

Delivers smooth, natural writing with dual-pen support, enabling real-time multi-user collaboration.

USB-C One-Cable Connectivity

Simplifies setup with a single cable for display, touch, data transfer, and device charging.

Immersive Audio with Eye-Care Technology

Combines powerful sound output with flicker-free and low blue light protection for a comfortable and engaging experience.

myViewBoard Interactive Teaching Suite
Provides powerful tools for lesson creation, collaboration, and content sharing across platforms.


ViewSonic ViewBoard 50-5 Series Interactive Display in Dubai, UAE

The ViewSonic ViewBoard 50-5 Series Interactive Display is designed for modern classrooms, delivering an intuitive and interactive experience for both educators and students. With Ultra Fine Touch technology and 40-point multi-touch capability, it enables smooth writing and seamless collaboration using fingers or dual-tip pens.

At Logixer, we supply and professionally install the ViewSonic ViewBoard 50-5 Series in Dubai and across the UAE, helping schools, training centers, and organizations enhance digital learning and presentations.

With USB-C one-cable connectivity, users can instantly connect devices for display, touch control, data transfer, and charging. Combined with flicker-free technology, TÜV-certified low blue light protection, and immersive audio, the ViewBoard 50-5 Series ensures a comfortable and engaging learning environment. Integrated with the myViewBoard ecosystem, it offers a complete solution for interactive teaching and collaboration.

Key Features

The ViewSonic ViewBoard 50-5 Series delivers a powerful interactive display with 40-point touch, USB-C connectivity, immersive audio, and myViewBoard integration. It is designed to enhance engagement, collaboration, and productivity in modern classrooms and training environments.

Smooth Writing with Ultra Fine Touch Technology

Experience natural, pen-on-paper writing with 40-point multi-touch and dual-pen support, enabling multiple users to collaborate simultaneously.

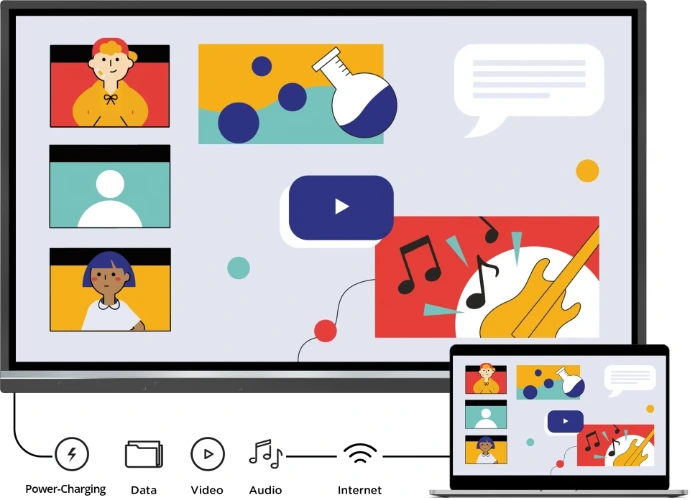

One Cable to Do It All

A USB-C one-cable solution allows instant multimedia playback, touch control, data transfer, and power charging for a clean and efficient setup.

Teach Your Way with myViewBoard Whiteboard

Integrated myViewBoard software provides interactive tools such as quizzes, timers, and activities, enabling engaging lesson delivery across platforms.

Quick Content Sharing for Multiple Attendees

Cast content from up to four devices simultaneously, supporting split, extended, and grouped screen modes for enhanced collaboration.

Convenient Browser-based Screen Sharing

Share your screen instantly using a browser without additional apps or cables, ensuring quick and flexible collaboration.

Efficient Remote Communication and Management

Manage and control multiple displays remotely using myViewBoard Manager, enabling scheduling, announcements, and centralized communication.

Performance and Safety with the Latest OS

Powered by an octa-core processor with Android OS, delivering smooth performance, enhanced security, and compatibility with modern applications.

Immersive Audio for Captivating Lessons

Equipped with dual 12W speakers and a 16W subwoofer, providing clear and powerful audio for engaging lessons and presentations.

Easy on the Eyes

Features flicker-free technology, TÜV-certified low blue light filter, and anti-glare coating, ensuring comfortable viewing during extended uses.

Grow Green

Built with energy-efficient and eco-friendly standards, supporting sustainability and reducing environmental impact.

Customize Your Teaching

Compatible with accessories such as slot-in PCs, speakerphones, cameras, and trolley carts, allowing flexible customization for different teaching environments.

Ideal Applications

The ViewSonic ViewBoard 50-5 Series Interactive Display is suitable for modern educational and professional environments, supporting interactive learning and seamless collaboration.

• Schools and Classrooms – Digital and interactive teaching
• Training Centers – Workshops and skill development
• Corporate Training Rooms – Employee learning sessions
• Universities – Advanced presentations and lectures
• Hybrid Learning Environments – Remote and in-person collaboration


ViewSonic Interactive Board Installation in Dubai


At Logixer,we provide complete supply, installation, and technical support for ViewSonic interactive displays across Dubai and the UAE. Our team ensures smooth deployment for educational institutions, corporate training environments, and collaborative spaces.

Whether for teaching, presentations, or hybrid learning, the ViewSonic ViewBoard 50-5 Series delivers a reliable and future-ready interactive solution.

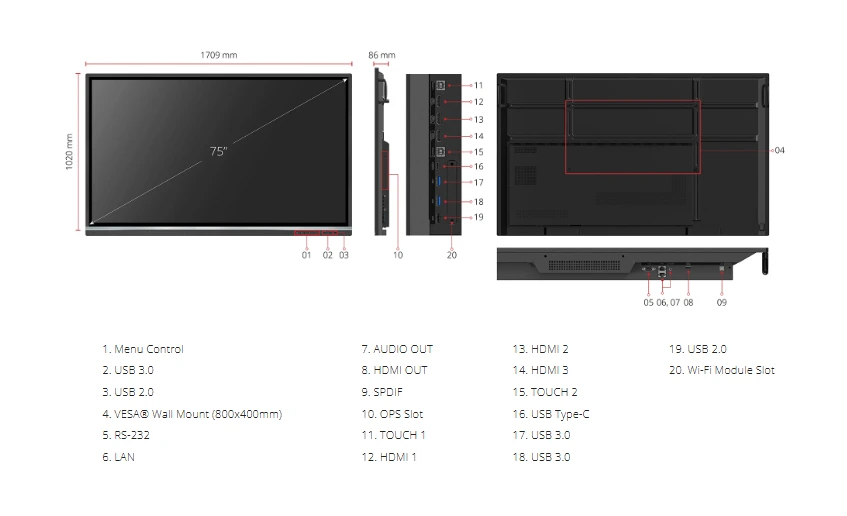

I/O



Display

Panel Size75"
Panel Type

 TFT LCD Module with DLED Backlight. IPS

Display Area (mm)

1650.24(H) × 928.26(V)

Aspect Ratio

16:9

Resolution

UHD 3840x2160

Colors

 1.07B colors (10bit)

Brightness450 nits (typ.)
Contrast Ratio

1200:1 (typ.) 5000:1 (DCR)

Response Time8ms
Viewing Angles

H = 178, V = 178 typ.

Backlight Life50,000 hours(Min)
Surface Treatment

Hardness: 9H, Anti-glare coating

Bezel

Slim

Orientation

Landscape

Platform

Processor ARM Cortex-A73*4 + Cortex-A53*4
RAM

8GB

Storage

64GB

Touch

Type/ Tech

Ultra Fine Touch Techology (IR Recognition)

Touch Resolution 32768 ×32768
Touch Point

40 points of touch, Android : 20 points of touch

INPUT

HDMI2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232x1
OPSx1
WiFix 1 module slot

OUTPUT

HDMIx1 (4K@60Hz)
Audiox1 (Earphone out)
SPDIF x1 (optical)

LAN

RJ45 x2

USB

Type A

 2.0 x 2

3.0 x 4

Type B x2, for touch
Type C x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)

SPEAKERS

12W x 2 + 16W x 1 subwoofers

Top Camera Plate

Yes

Embedded OS

Android 11 (Upgradable to Android 13)

Bundle Software

Basic Annotation Software

myViewBoard

Pro Annotation Software

myViewBoard for Windows (Embedded in Windows Slot-in PC)

Wireless Presentation

 vCast/myViewBoard Display App

Special Features

All-in-one USB port

“SmartPort™ USB” to all channels.

Simple LAN sharing between IFP and slot-in device

 Yes

Light Sensor

Yes

Power

Voltage100-240VAC +/- 10% Wide Range
Consumption135W(typ.), 0.5W (off)

ERGONOMICS

Wall Mount (VESA® )800 mm x 400 mm

OPERATING CONDITIONS

Temperature (º C) 0°C to 40°C
Humidity10% ~ 90% RH non-condensing

DIMENSIONS (W x H x D)

Physical (inch / mm)67.3 x 40.2 x 3.5 in / 1710 x 1020 x 90 mm
Packaging (inch / mm) 76.0 x 44.9 x 11.0 in / 1930 x 1140 x 280 mm

WEIGHT

Net (lb / kg)118.8lb/53.9kg
Gross (lb / kg)158.5lb/71.9kg

REGULATIONS

cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA

PACKAGE CONTENTS

1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2 (VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate

9. Screw x 8

10. HDMI cable

Compatible Slot-in PC

VPC2-O series, VPC2-O-B series, VPC25-W33-O1-1B, VPC27-W53-O1-1B, VPC12-WPO-17, VPC12-WPO-18


It is designed for interactive teaching, collaboration, and presentations in classrooms and training environments.

Yes, it supports 40-point touch, allowing multiple users to interact simultaneously.

It is an interactive teaching and collaboration software integrated into the display.

Yes, the USB-C one-cable solution allows easy connection, control, and charging.

Yes, it includes eye-care technologies such as low blue light and flicker-free display for comfortable extended use.
