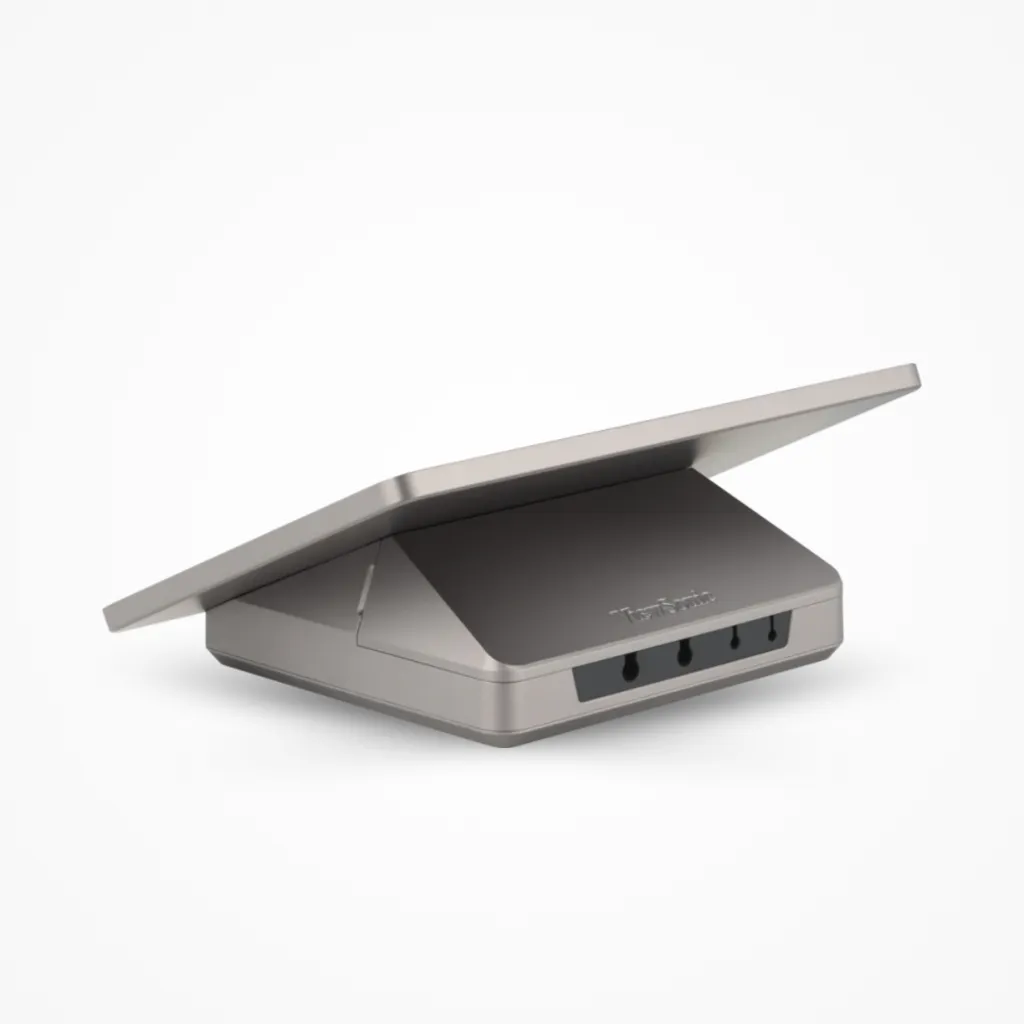

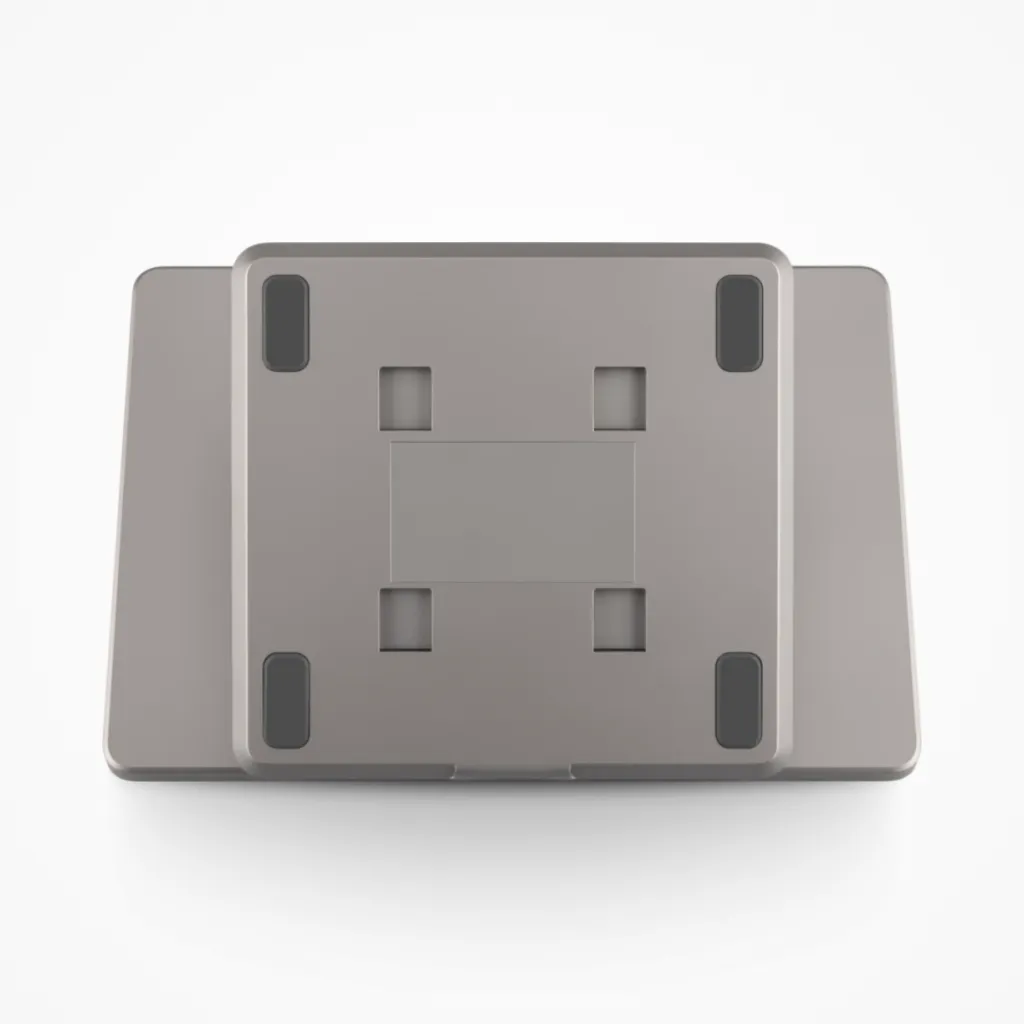

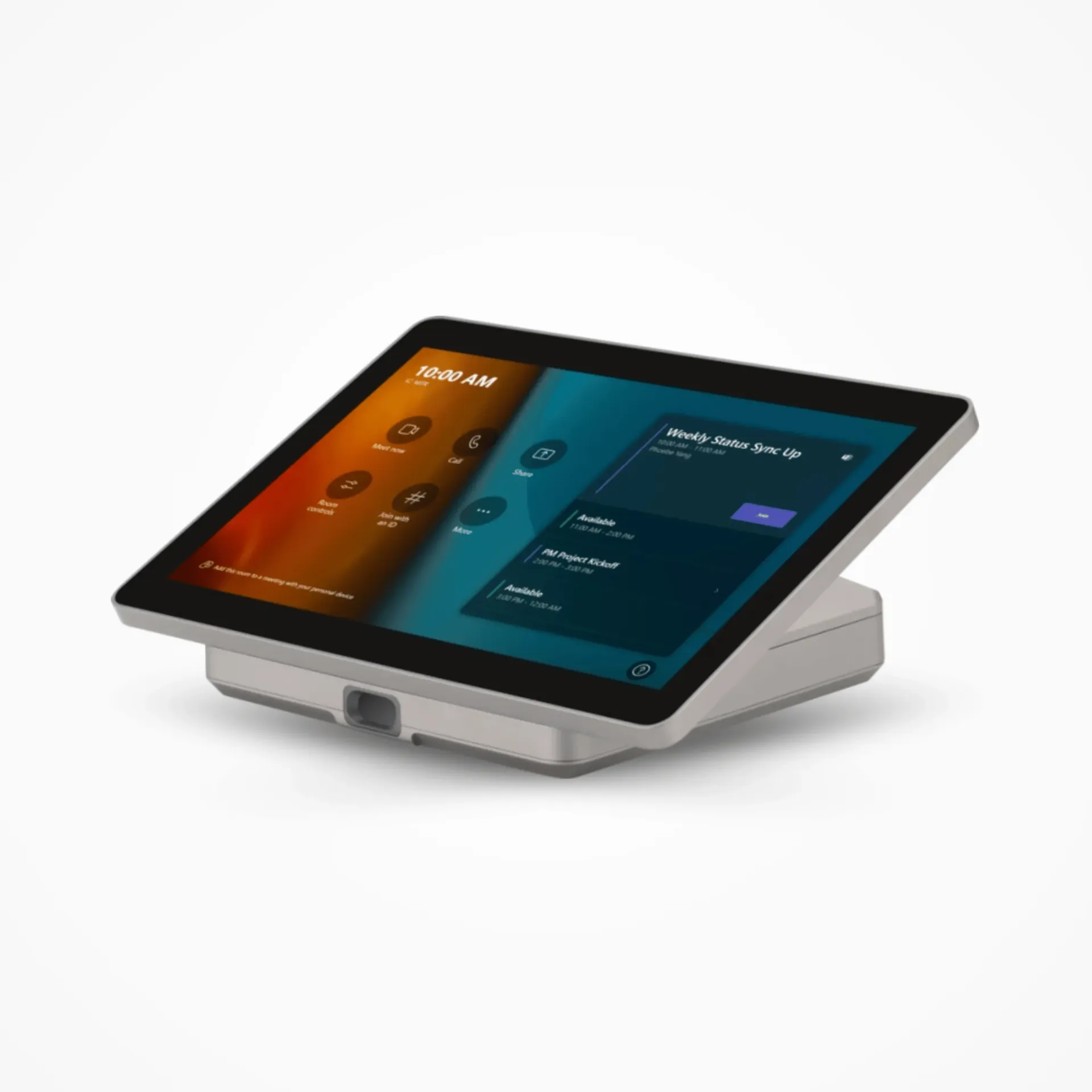

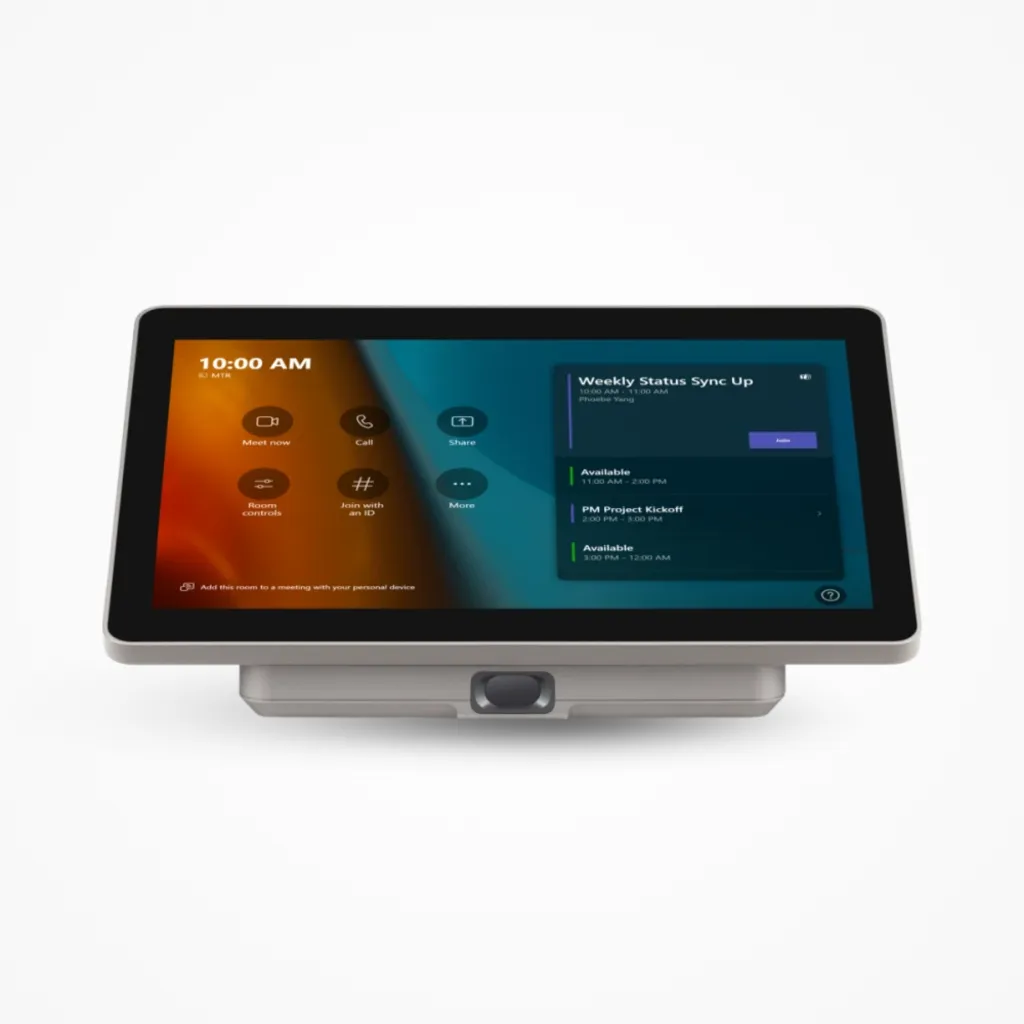

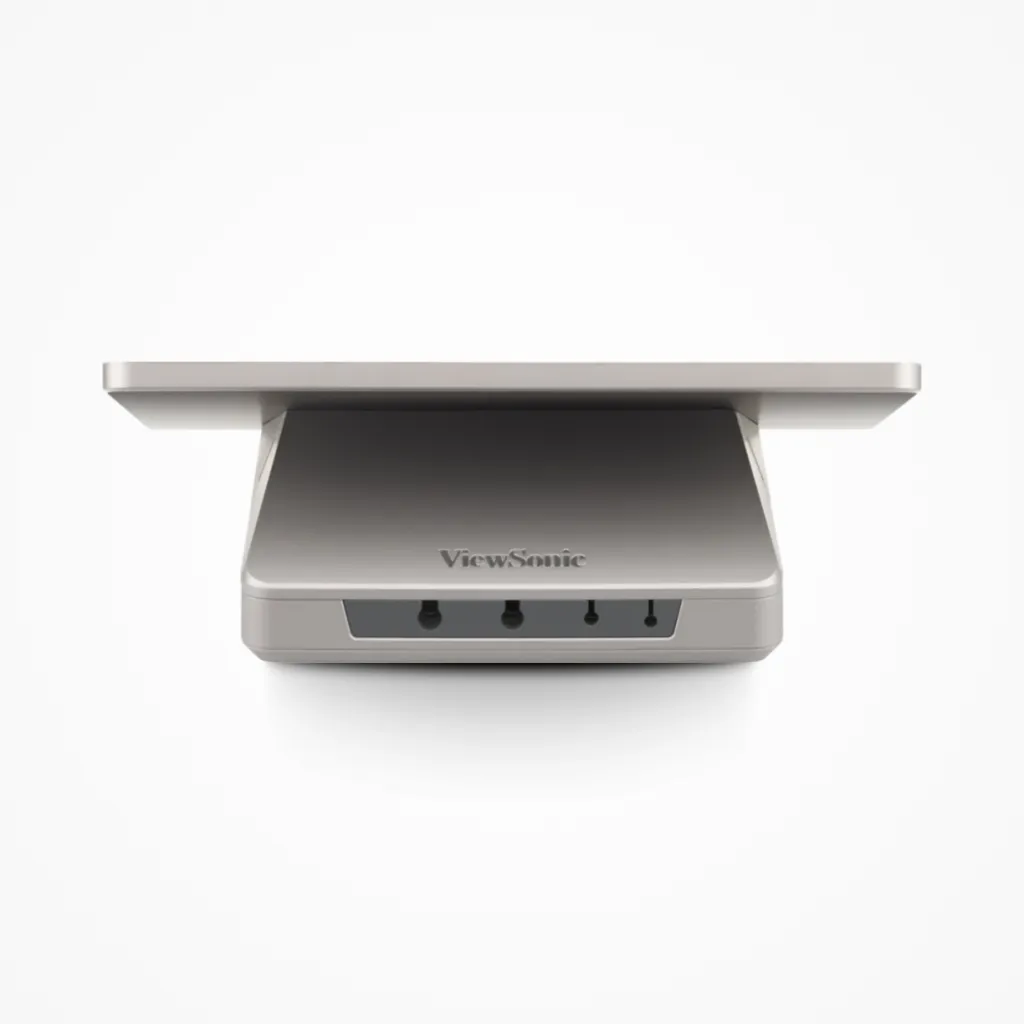

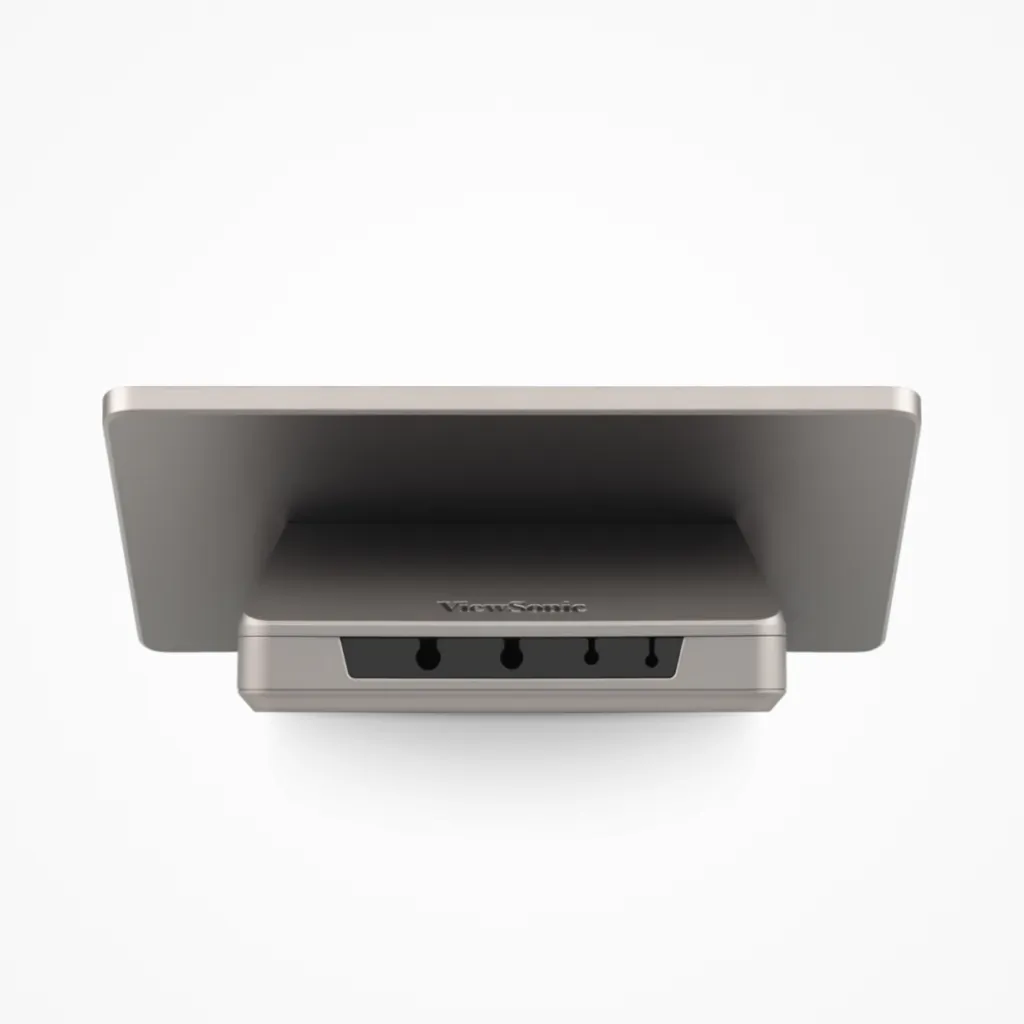

Viewsonic-MRC1010-TN

Key Feature

TeamJoin™ Touch Console

High-clarity anti-glare 10.1” Full HD touchscreen
Direct HDMI Ingest support for BYOD presentations
Auto on/off with a human presence sensor for an instant meeting start and battery saving

0.00 AED

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LG 105TR5WP Interactive Display – Ultra-Wide Interactive Screen in Dubai, UAE

The LG 105TR5WP is a premium ultra-wide interactive display designed for advanced collaboration, immersive presentations, and high-impact communication. Featuring a massive 105-inch 5K resolution (5,120 × 2,160) interactive screen with 21:9 aspect ratio, this display delivers an expansive viewing experience that goes beyond traditional formats. This interactive board is ideal for large meeting rooms, executive boardrooms, and modern training environments.

With up to 50 touch points, the interactive display enables multiple users to interact simultaneously, making teamwork and idea sharing more efficient. Its ultra-wide interactive screen is especially suited for video conferencing and multi-content presentations.

At Logixer, we supply and install LG interactive displays across Dubai and the UAE, helping businesses upgrade to next-generation collaboration technology.

Ultra-Wide Collaboration Experience

21:9 Extended Interactive Screen

The LG 105TR5WP interactive display features a 21:9 ultra-wide interactive screen, offering a more immersive experience compared to standard displays. This format is ideal for widescreen content, video conferencing platforms, and side-by-side content viewing.

Enhanced Multi-User Interaction

With support for up to 50 touch points, the interactive board allows multiple participants to write, draw, and interact on the display simultaneously, improving collaboration in group environments.

Smart Whiteboarding and Productivity Tools

LG Create Board Lab

The interactive display includes LG Create Board Lab, a powerful whiteboarding software with tools such as pen, shapes, text, sticky notes, and annotations for seamless collaboration.

Built-in Web Browser

The interactive screen allows users to access online content in real time. Users can drag and drop images, text, and links directly onto the interactive display to enhance productivity during meetings.

Multi-OS Compatibility

The interactive board supports multiple operating systems including Android, Windows, Chrome, and web-based platforms, allowing users to work across different devices easily.

Wireless Collaboration and Screen Sharing

LG Create Board Share

The interactive display supports wireless screen sharing, allowing users to share content from laptops, tablets, and smartphones without cables. Up to 9 screens can be shared simultaneously on the interactive screen.

Easy Connection

Users can quickly connect to the interactive display using a simple 6-digit code, ensuring fast and secure collaboration.

Advanced Connectivity and Integration

USB-C and Bluetooth Support

USB-C connectivity allows users to connect devices, transfer data, and charge through a single cable. Bluetooth support enables connection with external devices such as keyboards, mouse, and speakers.

OPS Slot Integration

The interactive board supports OPS modules, allowing users to integrate PC functionality directly into the display for enhanced performance.

Front Connectivity Design

Front-facing ports make it easy to connect devices to the interactive screen during meetings and presentations.

Audio and Communication Features

Built-in Speakers and Microphones

The interactive display includes integrated speakers and microphones, providing clear audio and effective communication for video conferencing without additional equipment.

Remote Management and Control

LG ConnectedCare

The interactive display supports LG ConnectedCare, a cloud-based solution for remote monitoring, control, and management of multiple displays.

Centralized Control Features

IT administrators can manage power, scheduling, brightness, and content broadcasting across multiple interactive boards from a single platform.

Productivity and Multi-Tasking

Multi-Screen Mode

The interactive display supports multi-screen functionality, allowing users to take notes, browse content, and play videos simultaneously, improving workflow efficiency.

Ideal Applications

The LG interactive display is suitable for:

• Executive boardrooms

• Large conference rooms

• Training centers

• Corporate environments

• Smart classrooms

• Collaboration spaces

LG Interactive Display Supply and Installation in Dubai

At Logixer, we provide complete supply, installation, and technical support for LG interactive displays across Dubai and the UAE. Our team ensures seamless deployment of interactive screens and interactive boards for businesses and educational institutions.

The LG 105TR5WP interactive display is a premium solution for organizations looking to deliver immersive presentations and advanced collaboration experiences.

Panel

Screen Size	105"
Panel Technology	VA
Back Light Type	Direct
Aspect Ratio	21:09
Native Resolution	5,120 X 2,160 (5K)
Refresh Rate	60 Hz
Brightness	400 nit (Typ.) with Glass
Contrast Ratio	4,000 : 1
Dynamic CR	5,000 : 1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 × 178
Color Depth	10bit(8bit + FRC)
Response Time	6.5 ms (Typ.)
Surface Treatment (Haze)	25%
Lifetime	50,000 Hrs (Min.)
Operation Hours (Hours / Days)	16 / 7
Portrait / Landscape	No / Yes
Transparency (Typ.)	5.50%

Mechanical Specification

Bezel Color	Black
Bezel Width (T / R / L / B)	27.8 / 17.4 / 17.4 / 39.2 mm
Weight (Head)	84.6 kg
Packed Weight	124 kg
Monitor Dimensions (W × H × D)	2,511 × 1,130 × 92 mm
Carton Dimensions (W × H × D) (Box Outer Size)	2,668 × 280 × 1,305 mm
Handle	Yes (4)
VESA™ Standard Mount Interface	1,000 x 600 mm
Protection Glass (Degree of Protection)	Safety Glass
Protection Glass (Thickness)	4 mm
Protection Glass (Tempered / Chemical Strengthening)	Tempered strengthening
Protection Glass (Anti-Reflective)	Yes
Protection Glass (Shatter-Proof)	Yes

Feature

Internal Memory (64 GB), Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Local Key Operation, Built-in MIC (8), webOS ver. (Android 13), Booting Logo Image, RS-232C Sync (LG RS232C Command)), PIP, PBP (4), Screen Share (LG CreateBoard Share), Crestron Connected, Smart Energy Saving, Wake on LAN, Network Ready (Fast Power On), HDMI-CEC

Environment Conditions

Operation Temperature	0°C to 40°C
Operation Humidity	10% to 90%

Power

Power Supply	100-240 V ~, 50/60 Hz
Power Type	Built-In Power

Power Consumption

Typ./Max.	315 / 560 W
Smart Energy Saving (70%)	Yes
Power off	0.5 W
BTU (British Thermal Unit)	1,075 BTU/Hr(Typ.), 1,911 BTU/Hr(Max)

Standard (Certification)

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP / Energy Star	Yes / Yes

OPS Compatibility

OPS Type Compatible	Yes
OPS Power Built In	Yes

Software Compatibility

LG Connected Care

Yes

Connectivity

Input	HDMI (4, HDCP 2.3), DP (HDCP 1.4/2.3), Audio In, , RS-232C In, RJ45 (LAN), USB3.0 Type A (6), USB2.0 Type A, USB3.0 Type C (2)
Output	HDMI Out, Audio Out, Touch USB (3), RJ45 (LAN) Out

Sound

Speaker

Yes (20Wx2 + 20W)

Language

English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese, Estonian, Lithunian

Accessory

Basic

Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Touch

Available Object Size for Touch	Ø2 mm↑
Writing Height	≤2 ms
Response Time	≤5 ms
Accuracy	±1 mm (Typ.)
Interface	USB 2.0
Protection Glass Thickness	4 mm
Protection Glass Transmission	88%
Operating System Support	Windows 10 / 8 / 7 / Android / Linux / Mac OS X / Chrome
Multi Touch Point	50 Points (Max.)

Android System

CPU	Octa-core A76 × 4 + A55 × 4
GPU	Mali-G610 MP4
RAM	8 GB
Storage	64 GB
Wi-Fi	802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
LAN	Gigabit LAN
Bluetooth	Bluetooth 5.3
OS ver.	Android 13

What makes the LG 105TR5WP interactive display unique?

The LG 105TR5WP interactive display features a 105-inch ultra-wide interactive screen with 5K resolution and a 21:9 aspect ratio, providing a more immersive viewing experience compared to standard displays.

What advantages does the 21:9 interactive screen offer?

The 21:9 interactive screen provides a wider viewing area compared to standard displays, allowing better visibility for video conferencing and multi-content presentation on the interactive display.

How does the LG 105TR5WP interactive board support team discussions?

The LG 105TR5WP interactive board allows multiple users to interact at the same time with up to 50 touch points, making discussions and brainstorming sessions more effective on the display.

Can multiple users share content at the same time on the interactive display?

Yes, the interactive display supports wireless screen sharing with up to 9 screens simultaneously, making collaboration on the interactive screen more dynamic.
